Hydrotalcite
Main features of the product
·Magnesium aluminum synthesized hydrotalcite
·Hydrotalcite purity 99.5-99.9%
·Small particle size (D50 0.5-1.5 μ m)
·Moisture content (less than 0.3%)
·Bulk density (0.2-0.25g/cm3)
·High transparency and good light transmittance
·Good dispersibility

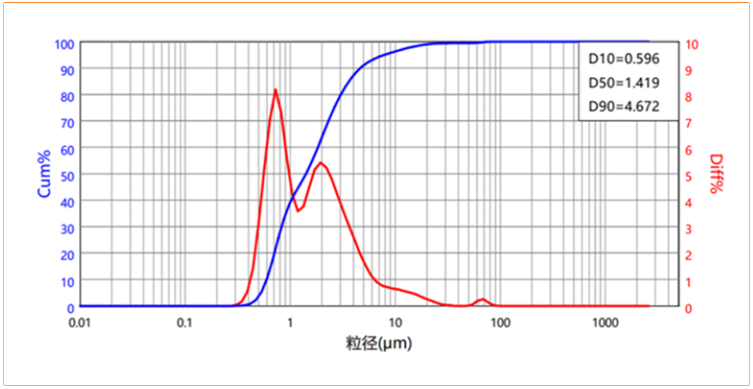

Particle size distribution map of hydrotalcite
·Magnesium aluminum synthesized hydrotalcite
·Hydrotalcite purity 99.5-99.9%
·Small particle size (D50 0.5-1.5 μ m)
·Moisture content (less than 0.3%)
·Bulk density (0.2-0.25g/cm3)
·High transparency and good light transmittance
·Good dispersibility
Particle size distribution map of hydrotalcite
Other performance
·Excellent long-term thermal stability
·Environmentally friendly non-toxic stabilizer
·Improve optical and other processing performance
·Improve light transmittance and surface glossiness
·Enhance tear strength
·Excellent long-term thermal stability
·Environmentally friendly non-toxic stabilizer
·Improve optical and other processing performance
·Improve light transmittance and surface glossiness
·Enhance tear strength
Application direction
Mainly used in fields such as agricultural film and thin film
Mainly used in fields such as agricultural film and thin film
Specification
Parameter comparison
|
Hydrotalcite Name |
Content / WT.% |
Thickness / μm |
Haze / % |
Transmittance / % |
|
No Hydrotalcite Added |
0 |
0.26 |
57.38 |
82.69 |
|
A&H Hydrotalcite |
5 WT.% |
0.26 |
50.98 |
87.35 |
|
Imported Hydrotalcite |
5 WT.% |
0.26 |
55.53 |
87.06 |
|
Hydrotalcite Name |
Content / WT.% |
Thickness / μm |
Haze / % |
Transmittance / % |
|
No Hydrotalcite Added |
0 |
0.26 |
57.38 |
82.69 |
|
A&H Hydrotalcite |
5 WT.% |
0.26 |
50.98 |
87.35 |
|
Imported Hydrotalcite |
5 WT.% |
0.26 |
55.53 |
87.06 |

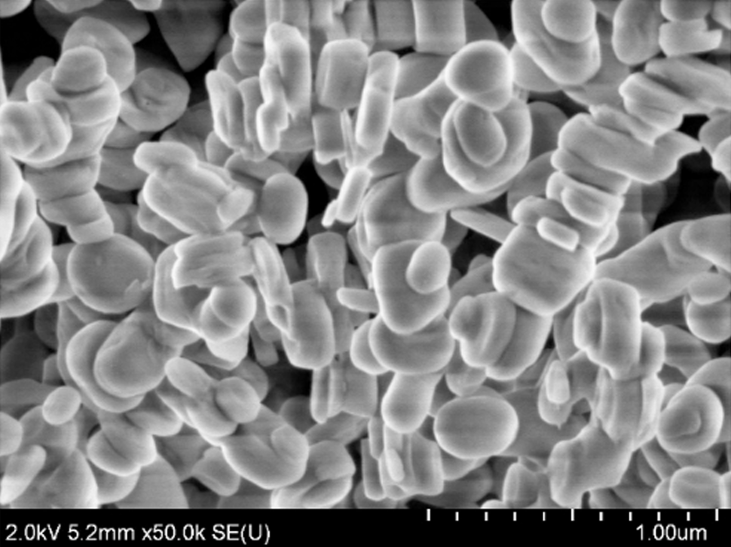

Microscope image
SEM (Scanning Electron Microscope) image of hydrotalcite
SEM (Scanning Electron Microscope) image of hydrotalcite
Recommended usage method
Product addition ratio, or suggestions for using it together with other different additives
Suggested dosage of hydrotalcite is 2-6wt%
Comparison of technical parameters with other products
The EU RoHS Directive 2011/65/EU did not detect lead, mercury, cadmium, hexavalent chromium, polychlorinated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), dibutyl phthalate (DBP), butyl phthalate (BBP), di (2-ethylhexyl) phthalate (DEHP), and diisobutyl phthalate (DIBP).
Product addition ratio, or suggestions for using it together with other different additives
Suggested dosage of hydrotalcite is 2-6wt%
Comparison of technical parameters with other products
The EU RoHS Directive 2011/65/EU did not detect lead, mercury, cadmium, hexavalent chromium, polychlorinated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), dibutyl phthalate (DBP), butyl phthalate (BBP), di (2-ethylhexyl) phthalate (DEHP), and diisobutyl phthalate (DIBP).

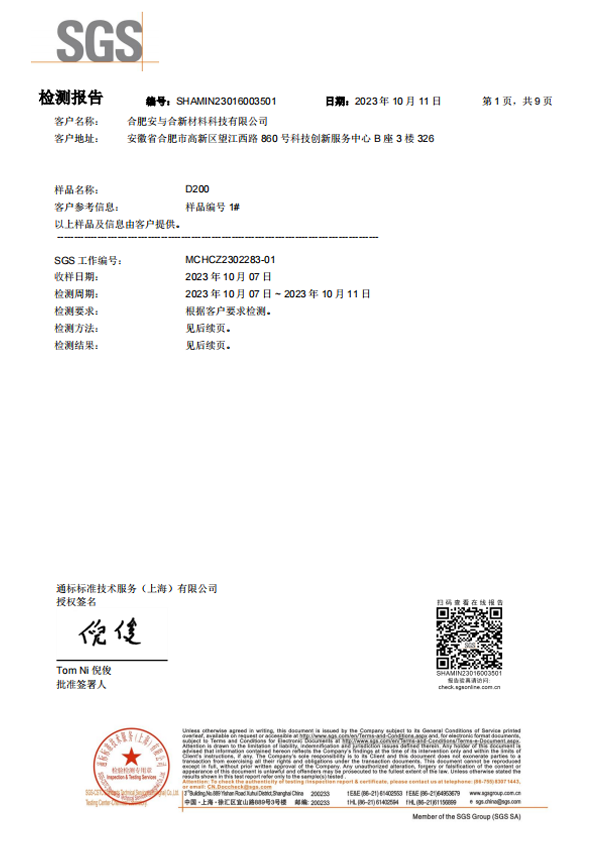

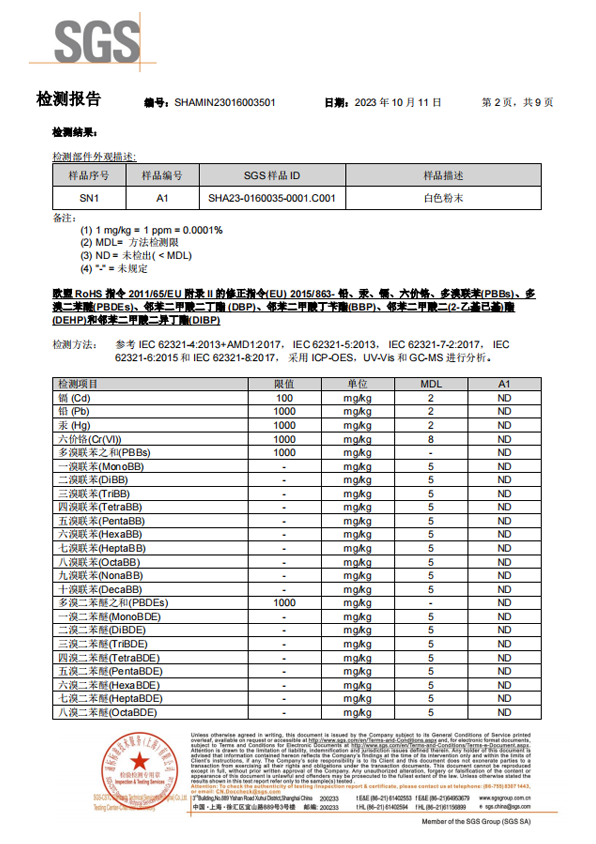

Third party SGS testing
Test conclusion:
The EU RoHS Directive 2011/65/EU did not detect lead, mercury, cadmium, hexavalent chromium, polychlorinated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), dibutyl phthalate (DBP), butyl phthalate (BBP), di (2-ethylhexyl) phthalate (DEHP), and diisobutyl phthalate (DIBP).
Test conclusion:
The EU RoHS Directive 2011/65/EU did not detect lead, mercury, cadmium, hexavalent chromium, polychlorinated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), dibutyl phthalate (DBP), butyl phthalate (BBP), di (2-ethylhexyl) phthalate (DEHP), and diisobutyl phthalate (DIBP).
